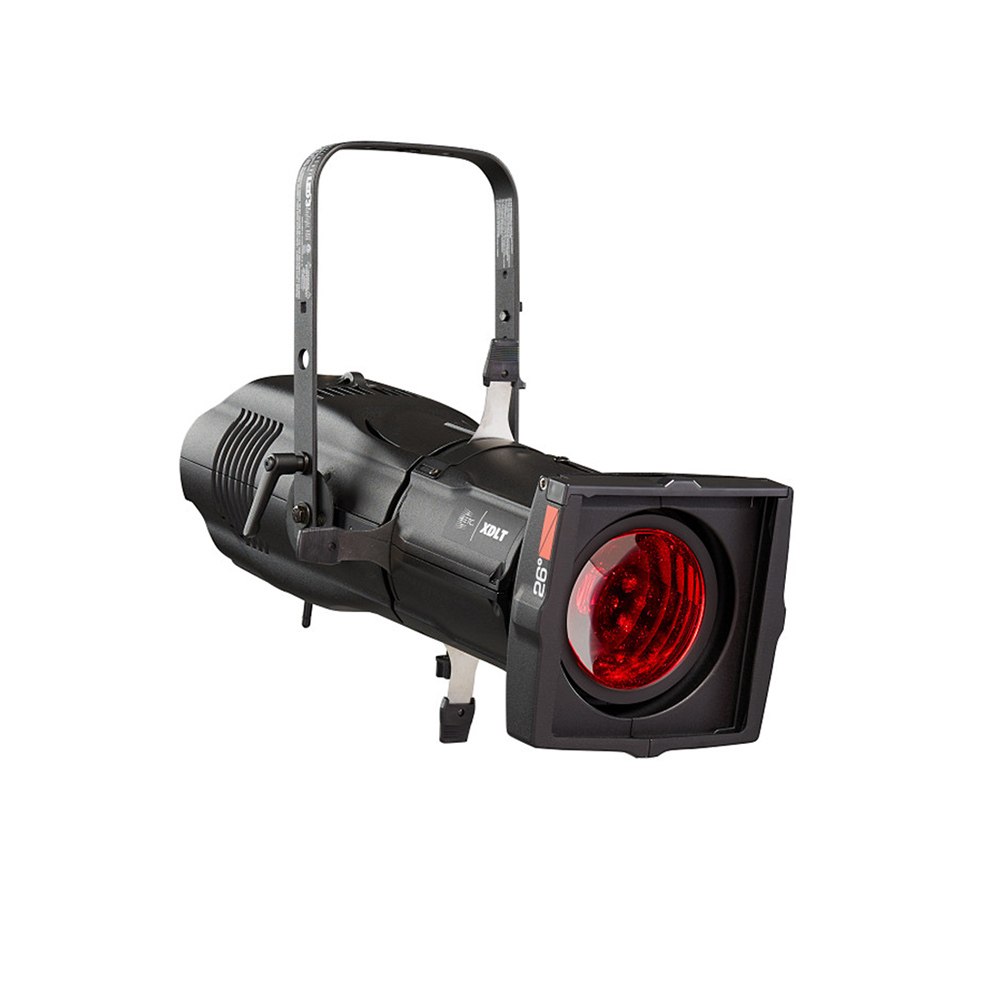

ETC Source Four LED Series 3 - NAN Audiovisuais

ETC Source Four LED Series 3 Solicitar orçamento

Setting standards that are far from standard
Over a decade of research comes together for the market that has inspired ETC for over 45 years. The Source Four LED Series 3 brings the brightest light to the stage with the Lustr X8 array for the most nuanced colors and the Daylight HDR array for tunable white light.

We’ve added wireless DMX/RDM by integrating City Theatrical’s Multiverse® protocol, and easy NFC configuration using your mobile device and ETC’s Set Light app.

Get the brightness you need from every distance, the color you’ve been craving, and the control you deserve for the most efficient workflow. Like all ETC fixtures, Series 3 is backed by an unmatched industry warranty.

The color of emotion
When ETC added lime to the x7 array in 2014, it was a revolutionary step forward for color mixing. Lime green increased the lumen output in open white and lighter tints making them brighter and livelier than other LED mixes. It was a step closer to matching the tungsten output of a conventional Source Four fixture. It also enriched color-rendering by better marrying the red and blue ends of the color spectrum

Well, we’ve done it again. This time we’re adding Deep Red to the mix. With the eight-color Lustr X8 array, Series 3 renders skin tones and sunsets with new depth. With the tunable white Daylight HDR array, you get a wider range of warm and cool whites. All, without sacrificing brightness.

Hang this fixture in a box boom, overhead, or from the farthest back-of-house position and be amazed at how bright your stage is. Source Four LED Series 3 truly brings brightness from every position.

Brochura Página do fabricante

Especificações

Source
LED details: 90 Lumileds LUXEON® C and CZ
Max lumens: Lustr X8: 10,889; Daylight HDR: 14,214
Lumens per watt: Lustr X8: 35; Daylight HDR: 42
L70 rating (hours to 70% output): >54,000

Color
Colors used: Lustr X8: Deep Red, Red, Amber, Lime, Green, Cyan, Blue, Indigo; Daylight HDR: Deep Red, Red, Mint, Cyan, Blue, Indigo
Color temperature: range 1900–10450 K
Calibrated array: Yes
Red shift: Yes (selectable)

Optical
Beam angle range: Swappable lens tubes between 5°–90°
Gate size: 80 mm
Aperture size: 6.25–17.5 in (depending on lens tube)
Pattern projection: Yes
Pattern size: A or B
Camera flicker control/Hz range: Yes: 5 kHz, 25 kHz
Notes: Can be used with LED CYC and Fresnel adapters

Weight:
- With barrel: 8.87 kg
- Without barrel: 6.76 kg
