Orka/Case

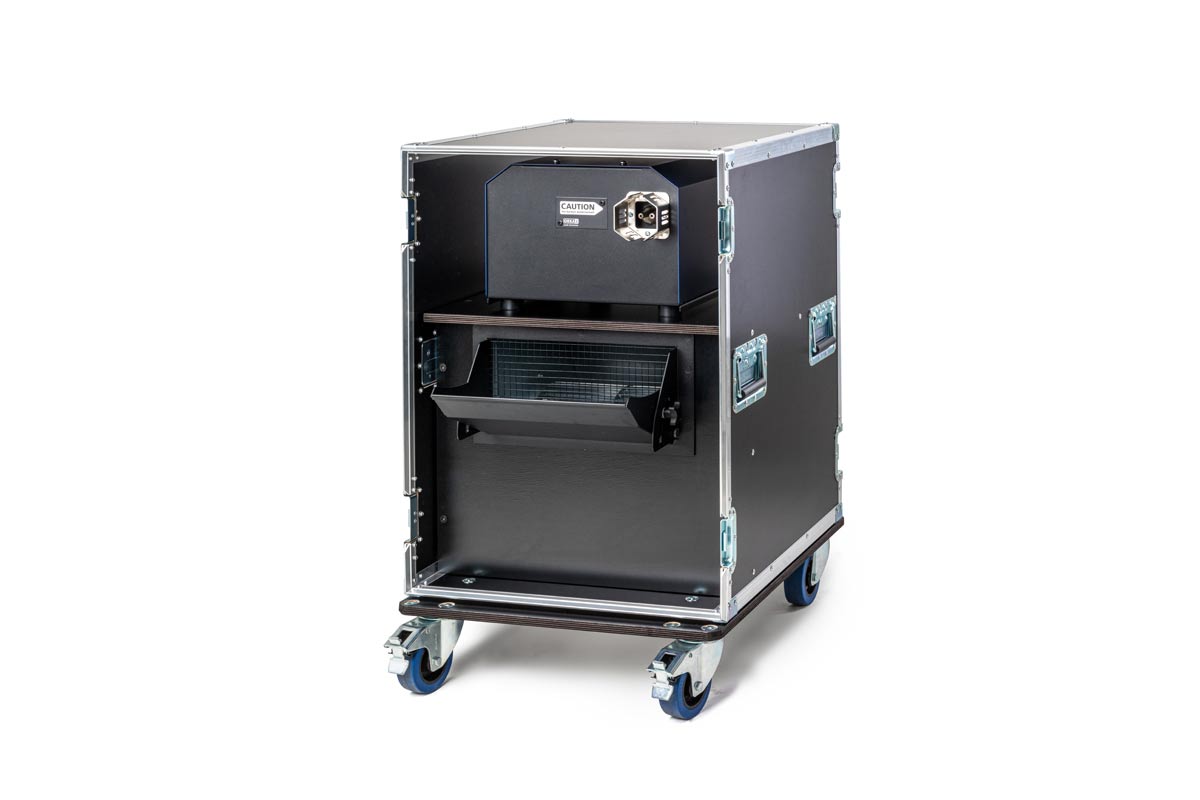

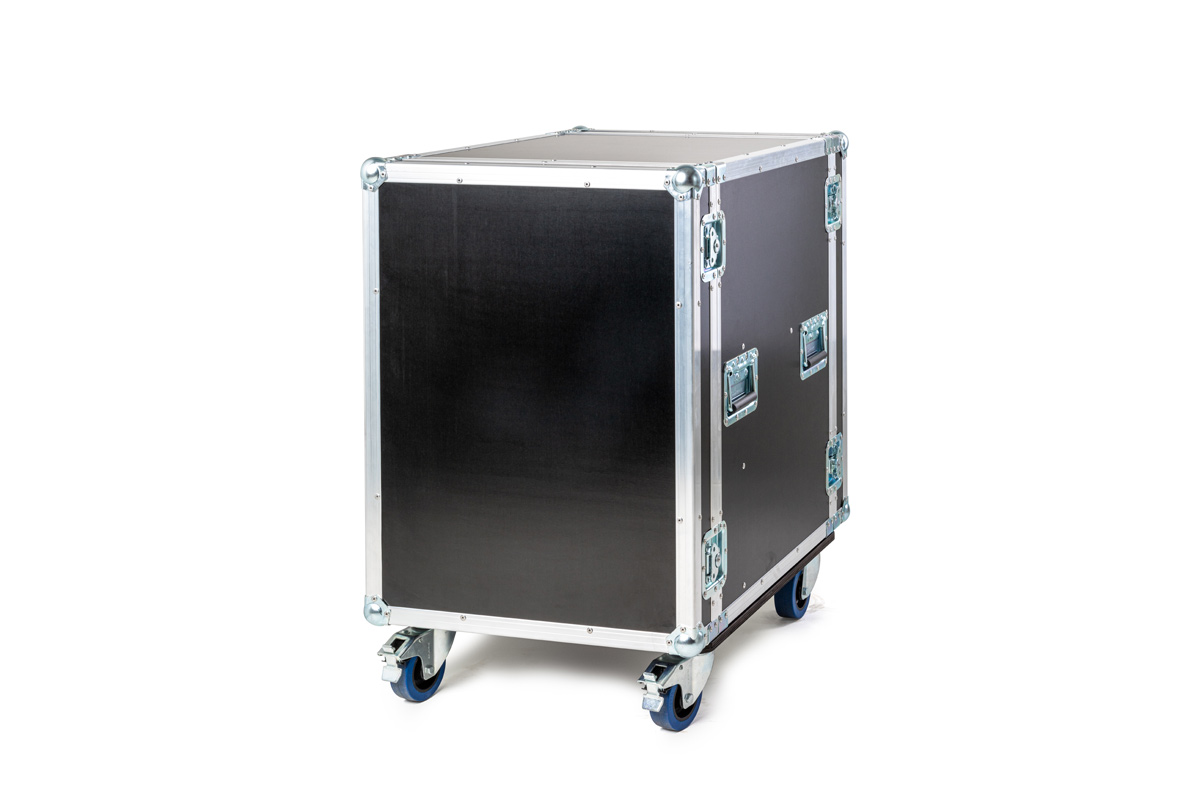

ORKA/Case fog & fan in a flightcase
The ORKA/Case is the most powerful touring fog generator available on the market that is produced as a serial product. It can be used wherever a high quantity of fog is needed in a very short time.
- DMX as standard, analog and stand-alone-mode
- Internal timer
- Fog and air output adjustable in steps of 1% (0 - 99%)
- Continuous output
- Easy handling
- Very powerful output
- Connector for external fan up to 800 Watt
- Made in Germany
-
EspecificaçõesProcedure: Vaporizing fog machine
Power requirement: 9000 watt / 8320 watt (208 V)
Voltage: 400 V / 50 Hz / 16 A CEE, 1 x 208 V / 60 Hz / 40 A (USA)
Warm up time: approx. 15 min.
Fluid consumption: 500 ml/min. at 100% output, 145 ml/min. at continuous output
Fluid tank capacity: 5 litre
Fog output: adjustable in 99 steps
Output projection: max. 30 m
Fogging time: approx. 2 min. at max. output, at < 50% continous output
Temperature control: Microprocessor controlled
Overheating protection: Heater block/thermostat, Pump/Thermal switch
Control: DMX 512, 0 - 10 V analog
Dimensions (L x W x H): 80 x 60 x 87 cm
Weight: 93 kg incl. canister
Delivery includes: Flightcase, Fan, 5L canister Regular-Fog
