MAX2

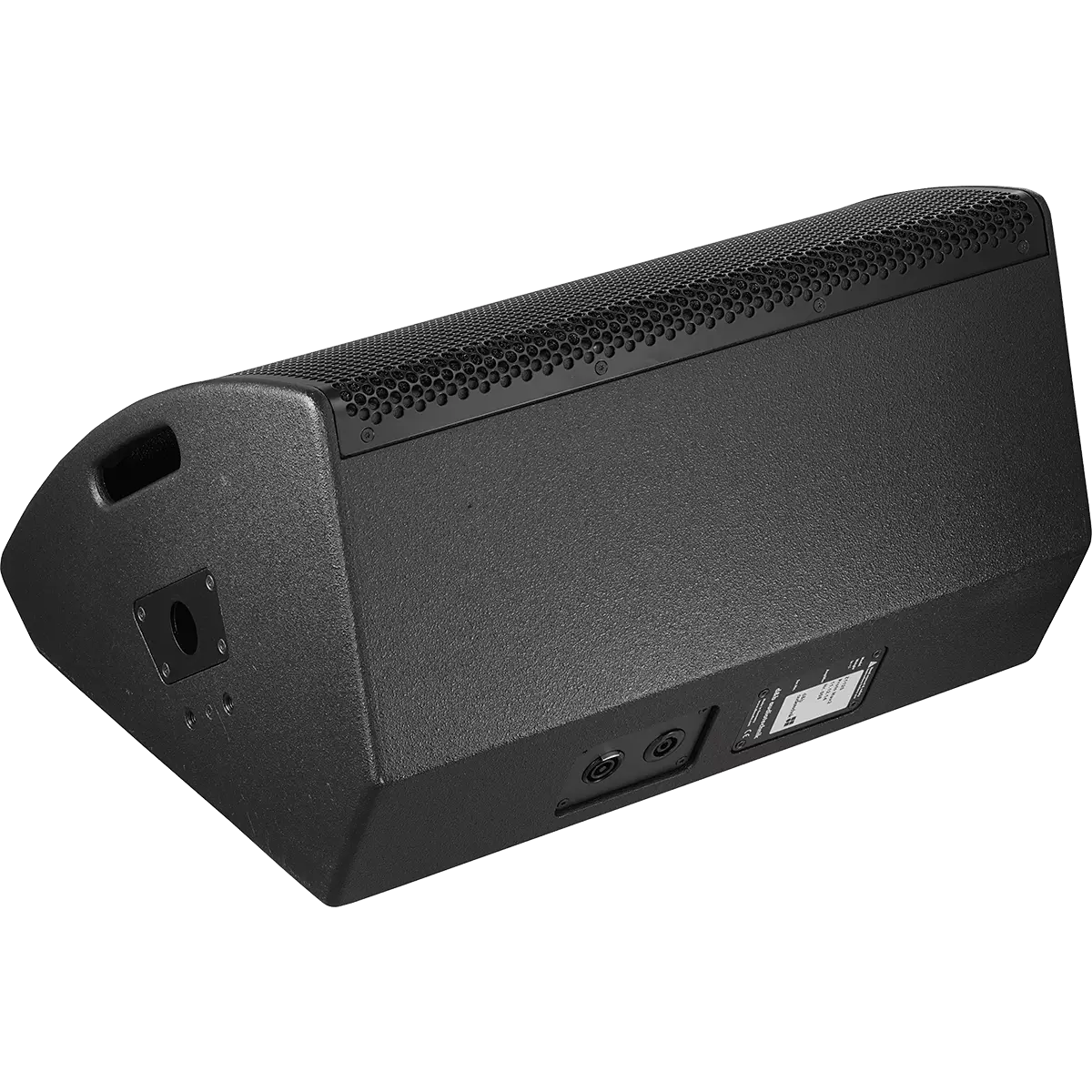

The 2-way passive MAX2 loudspeaker houses a 15” LF driver and a coaxially mounted 1.4” HF compression driver and achieves 75° conical constant directivity dispersion. The driver arrangement uses a single magnet assembly, allowing for a compact cabinet design with a low profile for strict visual demands. The MAX2 provides a broad variety of deployment possibilities, whether used individually as a stage monitor; as a stand-alone full range system or, when combined with d&b subwoofers, as a drumfill. The loudspeaker cabinet is constructed in marine plywood with an impact resistant paint finish.

2-way stage monitor

Components 15"/1.4"
Dispersion 75º
SPLmax 135 dB
Weight 23 kg / 50 lb
