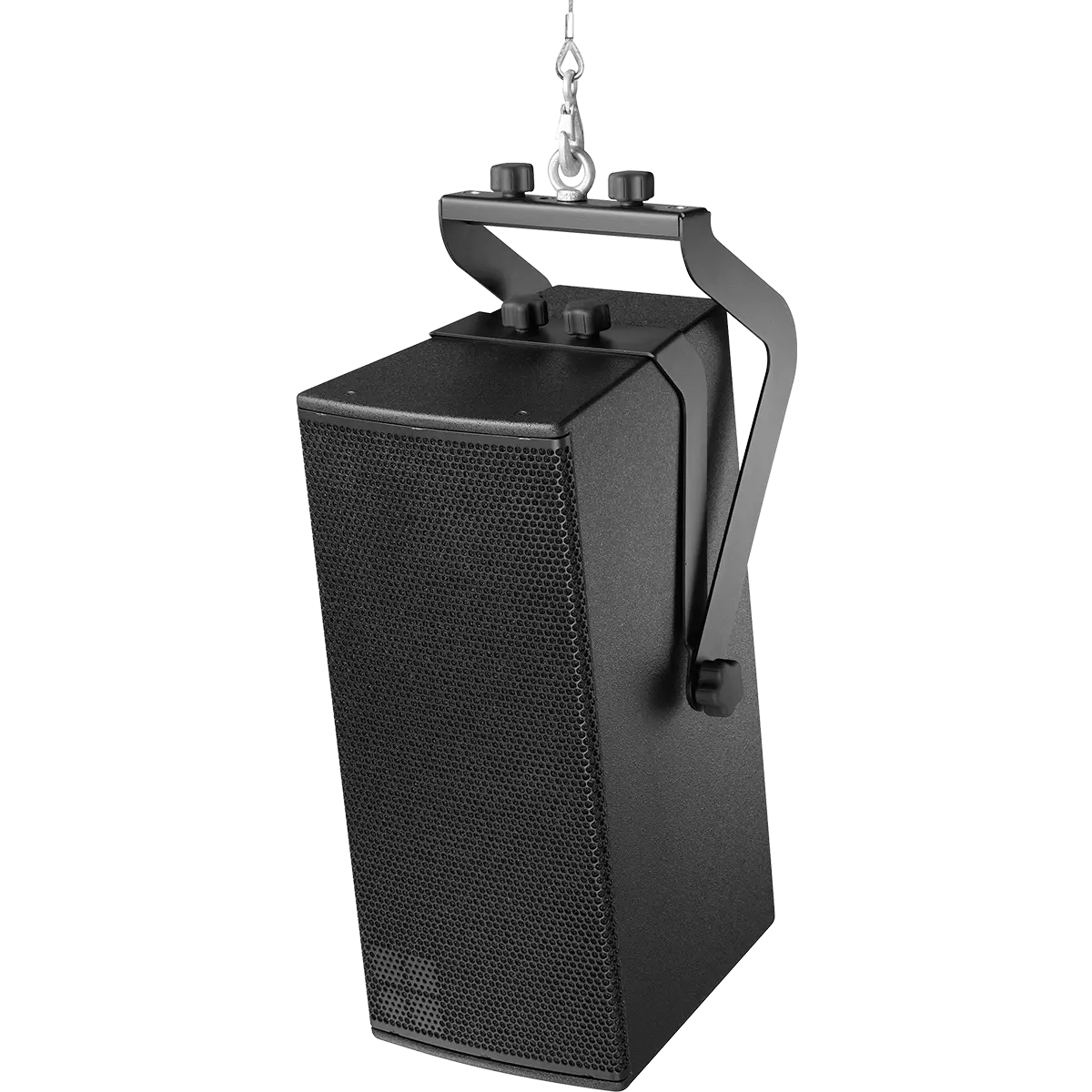

Yi7P

The compact, 2-way passive Yi7P loudspeaker features two 8” drivers in a dipole arrangement with a 1.4” compression driver mounted onto a rotatable CD horn. The Yi7P is the installation version of the Y7P loudspeaker and differs only in cabinet construction, finish and mounting hardware. Sophisticated horn geometry combined with the advanced bass-reflex port design delivers full bandwidth capabilities with an extended LF output. These point source, high performance cabinets offer 75° horizontal directivity controlled down to 500 Hz, matched with a vertical dispersion of 40°. The horn can be rotated by 90° to enable horizontal orientation. The Yi7P provides a broad variety of deployment possibilities, especially when used as a stand-alone full range system, or combined with other elements from the Y-Series, either ground stacked or flown. The loudspeaker cabinet is constructed from marine plywood and has an impact resistant paint finish while Weather Resistant (WR) and Special Color (SC) versions are available. The Weather Resistant option provides an IP55 rating, and enables operation of loudspeakers in changing ambient conditions.

Installation specific high performance 2-way passive point source loudspeaker

Components 2 x 8"/1.4"
Dispersion 75º x 40º
SPLmax 137 dB
Weight 18 kg / 40 lb
