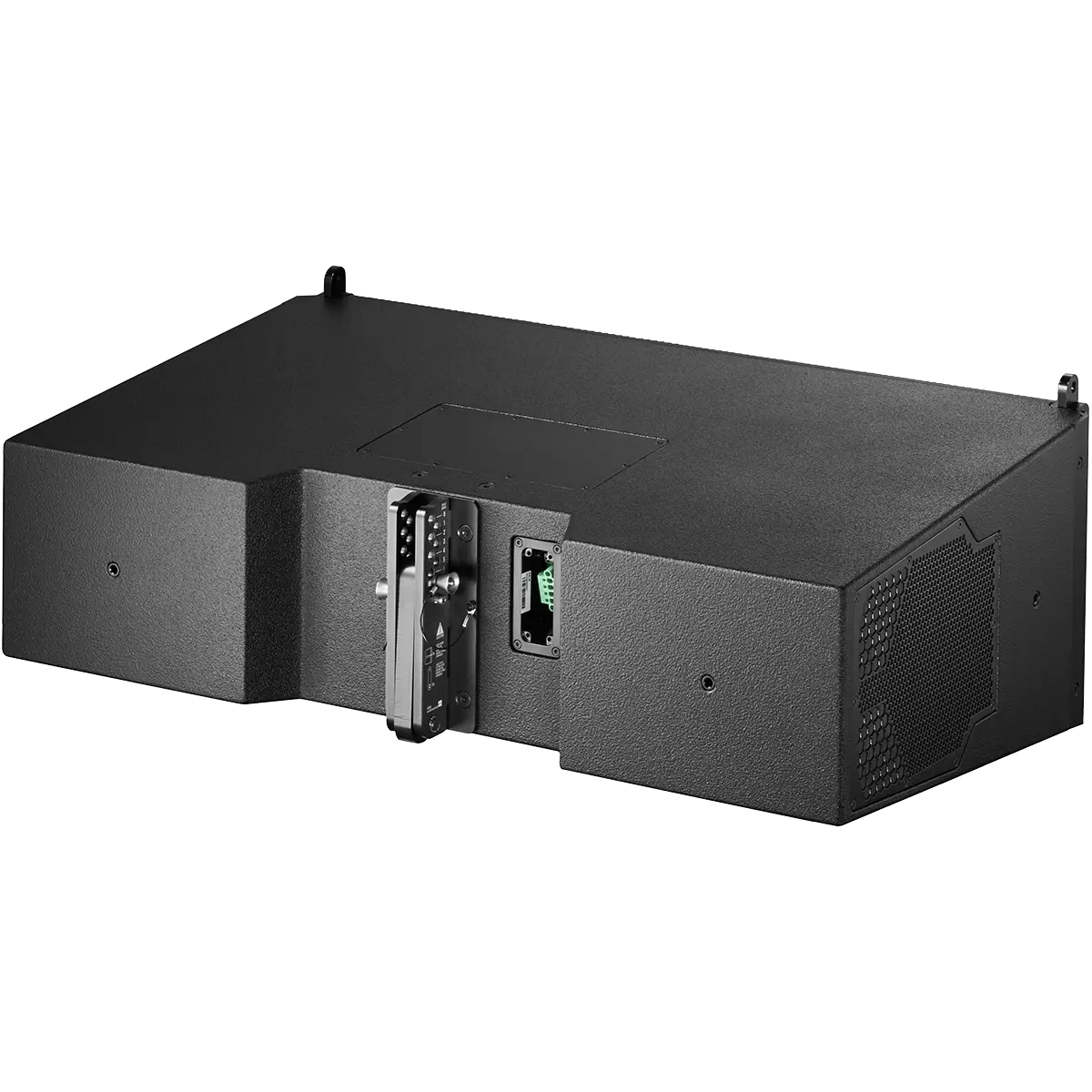

KSLi8

The KSLi8 is the installation variant of the KSL8 line array loudspeaker for medium to large scale sound reinforcement. The KSLi8 line array module produces an 80° constant directivity dispersion pattern in the horizontal plane over the entire operating bandwidth. The KSLi8 houses two 10" neodymium forward facing LF drivers and two side firing 8" neodymium LF drivers. A coaxial mid-high section contains an MF horn with an 8" driver and two 1.4" exit, 3" voice coil HF compression drivers mounted to a dedicated wave shaping device. SL-Series flying hardware comes with a patented workflow with integrated tension rigging mode, allowing splay angles between cabinets from 0° to 10° in 1° increments. The loudspeakers are driven actively by two channels of an appropriate d&b amplifier. One channel powers the 10” LF drivers, the second channel powers all other components, which are passively crossed-over.

Installation specific medium to large format 3-way line array loudspeaker

Components LF: 2 x 10" + 2 x 8"; MF: 1 x 8"; HF: 2 x 1.4" exit compression driver with 3" coil
Dispersion 80º
SPLmax 145 dB
Weight 57 kg / 126 lb
