Y12

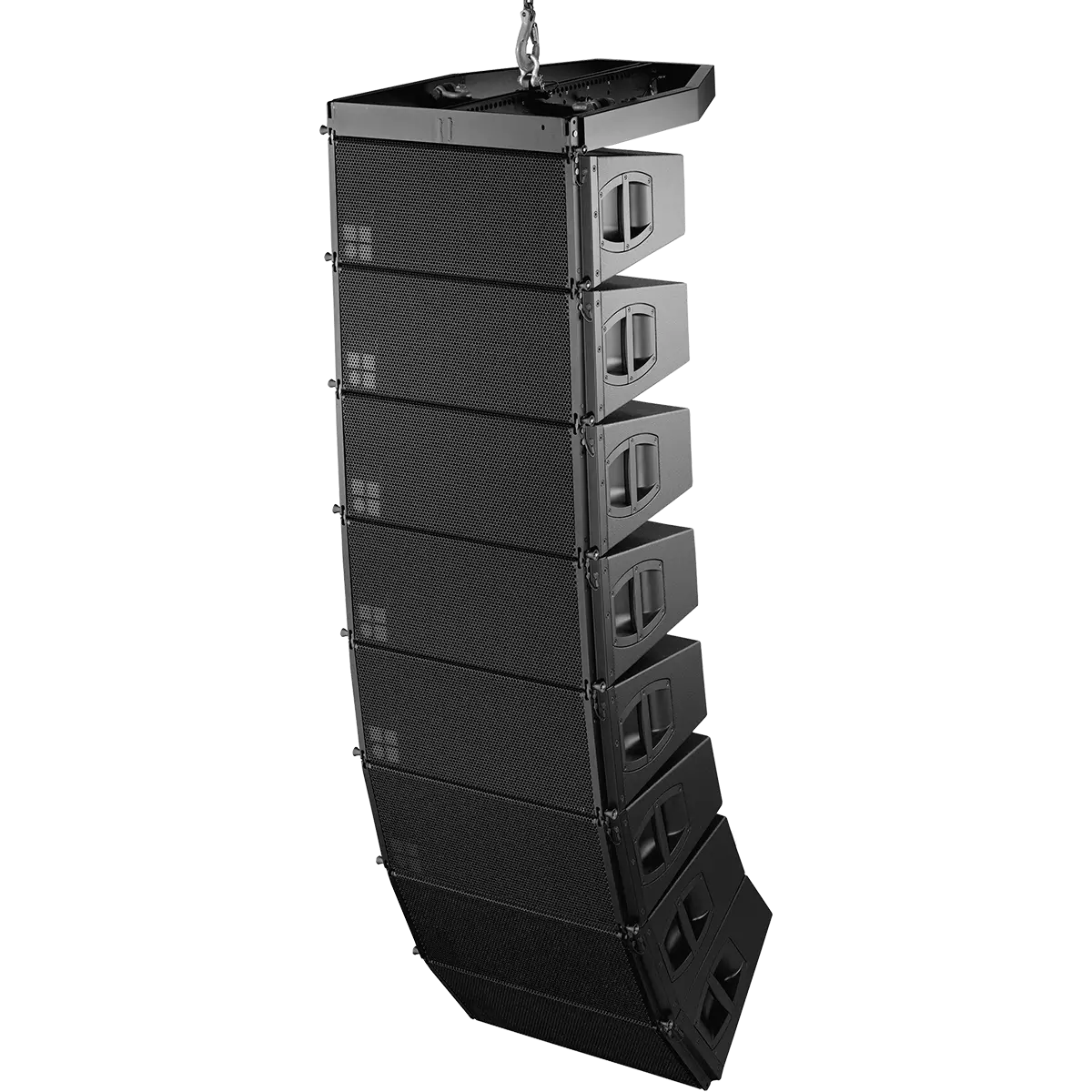

The compact Y12 line array loudspeaker is designed for use in vertical columns. The 2-way passive design features two 8” drivers in a dipole arrangement and a centrally mounted 1.4” compression driver with a wave transformer. Sophisticated horn geometry combined with the advanced bass-reflex port design delivers full bandwidth capabilities with an extended LF output. These high performance line array modules offer 120° horizontal directivity controlled down to 500 Hz. The mechanical and acoustical design enables vertical arrays of up to twenty four loudspeakers with vertical splay angles from 0° to 14° with a 1° resolution. It can be used in columns of purely Y12 loudspeakers or combined with Y8 and/or Y-SUB cabinets.

High performance 2-way passive line array loudspeaker

Components 2 x 8"/1.4"
Dispersion 120º
SPLmax 139 dB
Weight 20 kg / 44 lb
