LINEA ST
- Leding
- Strobes & Blinders

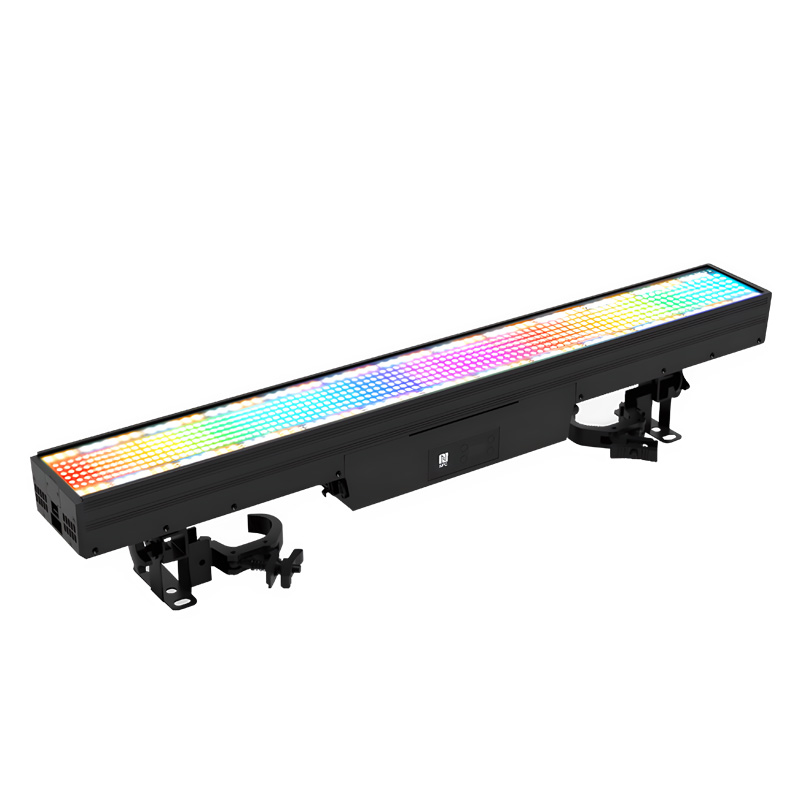

Linea ST is a waterproof, full-colour strobe batten designed to deliver powerful visual effects with reliable performance in demanding environments. Its wide body design, provides enhanced visual presence and broader coverage. With a high-density 1000W output, Linea ST delivers intense brightness even over long distances. The fixture features 48 individually controllable RGB sections, 24 cool-white sections and 24 warm-white sections, allowing precise colour mixing and fast, intuitive colour changes. High-frequency strobing, independent zone control and electronic dimming provide a wide range of dynamic effects, from subtle transitions to powerful, explosive looks. With an IP66 rating, Linea ST is built to withstand demanding outdoor conditions and ensure stable operation in all weather.
Optical System
Light source: 576 x 1.5W RGB, 288 x 0.5W CW, 288 x 0.5W WW,
Source Life Expectancy: 30,000 hours
Source manufacturer specification
Angle: 80º-120º
CW / WW CRI: 90
CTT: 1800-10000K
Luminous flux: 20000LM
Control System
Dimmer: 0-100% 24 Bit
Cooling: Direct convection
Protocol: DMX512, RDM, ARTNET, SACN, CRMX (option)
Functional effect: Display control, custom mode, 0-25Hz stobe
Channel mode: BASIC(20CH), STANDARD(24CH), EXTEND(27CH)
Control protocol: DMX512, RDM, CRMX (option), NFC
Display: On board Control, Custom Mode,0-25Hz Strobe
Con Personality: SSP(13CH), TOUR (21CH), PIXEL 1 (240CH),
PIXEL 2(159CH), PIXEL 1 FULL(130CH), PIXEL 2 FULL (250CH),
PIXEL 3 (65CH), PIXEL 4 (125CH)
Appearance
Size: 1000 x 207 x 194mm
Weight: 9.7kg
Casting: Die-cast Aluminum
Color: Black
Electrical Specs
Voltage: 100-240VAC,50/60Hz
Max.Power: 1000W
Power Connection: Power in/out
DMX XLR: 3pin or 5pin in and out ,
RJ45 in and out,USB-C
Work Environment
Ambient Temp: -20ºC-45ºC
IP Rated: IP66
Certification
CE Certification
