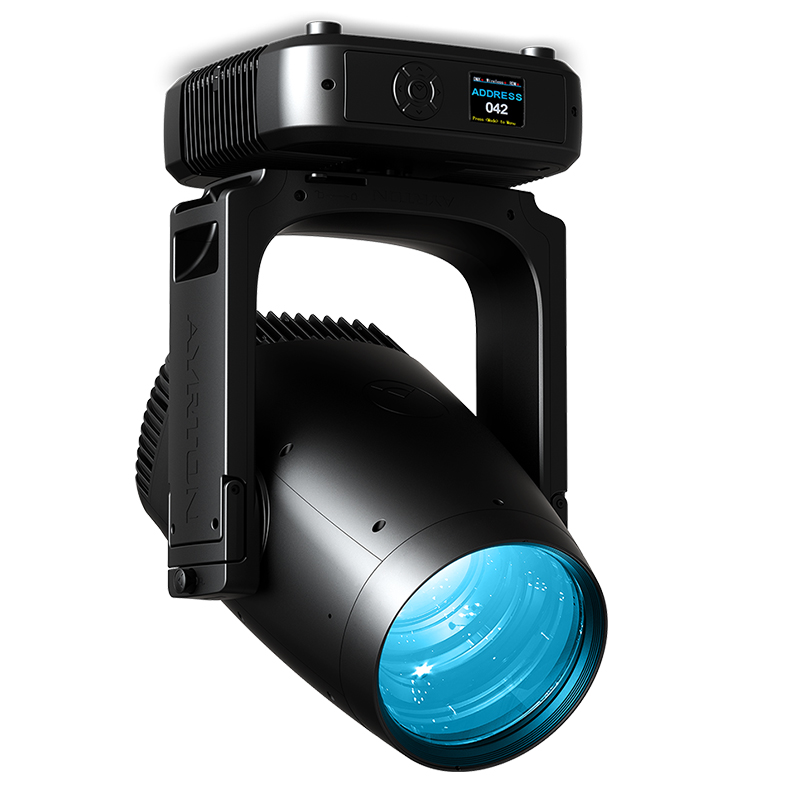

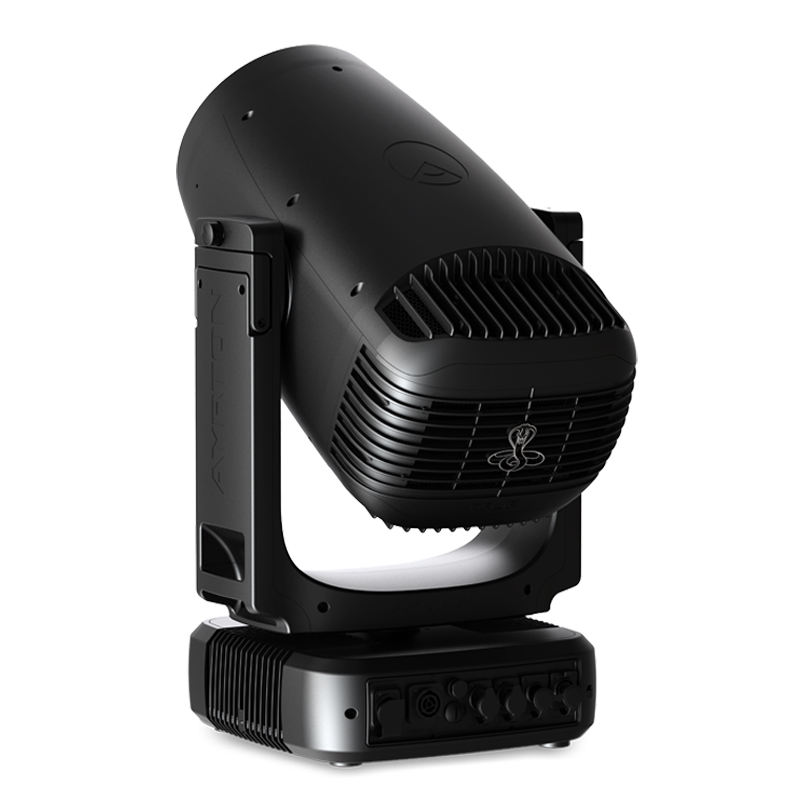

In 2016, Ayrton made headlines by launching DreamSpot 18K, the first laser-source automated luminaire designed for the entertainment industry. This avant-garde fixture powerfully embodied our pioneering vision. In 2021, Ayrton unveiled Cobra, an iconic projector for a generation of light designers in search of creativity, which went on to become a global success. Today, Ayrton continues to write this story, inspired by the most mythical of serpents: Naja, the ultimate expression of Cobra, elevated by its exceptional performance. Naja is the most sophisticated luminaire Ayrton has ever created. This revolutionary projector opens the door to the extraordinary with mind-bending psychedelic effects and an experience of light that is intense, immersive and ever more fascinating. A weatherproof, ultra-powerful, fully equipped luminaire that channels excess into a compact format, with its oversized 200 mm optics delivering a homogeneous 0.6° beam. With astonishing brightness and precision, Naja offers a 35x zoom range and a phenomenal illuminance of 1,840,000 lx at 10 metres.
OPTICS
13-element 35:1 zoom high-resolution optic system
Beam aperture: 0.6° to 21°
Tempered anti-reflective coated lenses
200 mm frontal lens
LIGHT SOURCE
Illuminance: 1,840,000 lux at 10 m
Colour temperature output: 9000 K
CRI: greater than 68
Rated life (L70): up to 12,000 hours
Speckle-free source
MOVEMENT
Extremely accurate positioning
Moving-head operated via either 8- or 16-bit resolution
Pan and tilt automatic repositioning
Moving-head range: infinite (pan & tilt)
COLOURS
Sophisticated colour mix system providing CMY colour mixing
Variable CTO colour temperature correction 3800 to 9500 K
Fixed colour wheel with 15 complementary colours, 2 multicolour and 2 minus green filters
Animation colour wheel with 3 different multicolour sections
GOBOS
One indexable rotating gobo wheels with 12 Quartz glass gobos (or metal), plus open position
Adjustable-speed rotating gobo in both directions
Fixed multi-position gobo wheel with instant access to 80 metal gobos
Gobo diameter: 6.9 mm
Image diameter: 4 mm
Gobo thickness: 1.1 mm
FROST
Light frost (1°) to soften the edge of the beam
Heavy frost (5°) for Wash effects
EFFECTS
Focusable graphic animation effect-wheel with continuous rotation in both directions
2 set of 3 combinable rotating and indexable prisms
2 extra sets of 2 combinable rotating and indexable prisms
DIMMER / STROBE
Electronic dimmer, allowing perfect light adjustment from 0 to 100% without colour variation
Strobe effect, with speed adjustment from 1 to 25 flashes per second
SOFTWARE FEATURES
Local DMX addressing of luminaire and optional parameters through its built-in LCD control panel
Remote DMX addressing of luminaire and optional parameters through a standard RDM DMX controller
Information menu including hour counter, temperature, software version
Special pan & tilt modes to enhance responsiveness with tracking systems
HARDWARE FEATURES
Graphic LCD display for addressing and special functions settings, with flip function
5 menu buttons to set functions
Excess temperature protection
Integrated wireless CRMX TiMo RDM receiver from LumenRadio
IP65 XLR 5 pin male and female connectors for DMX connection
IP65 RJ45 IN / OUT connectors for ArtNet and sACN connection
IP65 Power connectors male and female for power connection
Maximum Current available at the output socket: 12 A
CONTROL
DMX 512 protocol, through IP65 DMX cable or a wireless system
DMX-RDM compatible
Stand-alone mode and Main/Follow modes
ArtNet & sACN protocol through Ethernet cable
Local control panel, with IP65 LCD display
Choice of 1 DMX mode (49 DMX channels)
POWER SUPPLY
Electronic power supply with active PFC
100 to 240 Volts – 50/60Hz
Power: 700 W maximum
COOLING SYSTEM
Advanced high-performance cooling system
IP68 Self-adjusting variable speed fans for quiet operation (Auto mode)
Selectable ventilation user modes including Super Silent Mode
Safety protection against excess temperature
HOUSING
Moving-head skeleton made of aluminium and steel metal plates
Head in die-cast aluminium
Base in die-cast aluminium
Heatsinks in aluminium and copper
Arms moulded covers in self-extinguishing fire retardant ABS PC (V0 class)
Four-side handles for transportation
Four heavy-duty feet for better stability
IP65 protection rating
Exterior finish: black (Carbon)
INSTALLATION
Fastening bracket system: two Omega ¼ turn brackets designed for use with standard clamps
Mounting points: eight ¼ turn locking fittings allowing installation of Omega brackets on luminaire
Safety cable attachment point
OPERATING PARAMETERS
Operating positions: all (device on floor or fixed to a support)
Maximum permitted ambient temperature (Ta max): 45°C (113°F)
Minimum permitted ambient temperature (Ta min): -20°C (-4°F)
Minimum usage distance: 25 m (82ft)
COMPLIANCE
EU (EMC & LVD)
EMC Directive 2014/30/EU
LVD Directive 2014/35/EU
US (Safety & EMC)
UL 1573
FCC Part 15, Subpart B: 2023
Substance regulations
