ECLIPSE S 200 C6
- Leding
- Projetores de Teatro e Estúdio

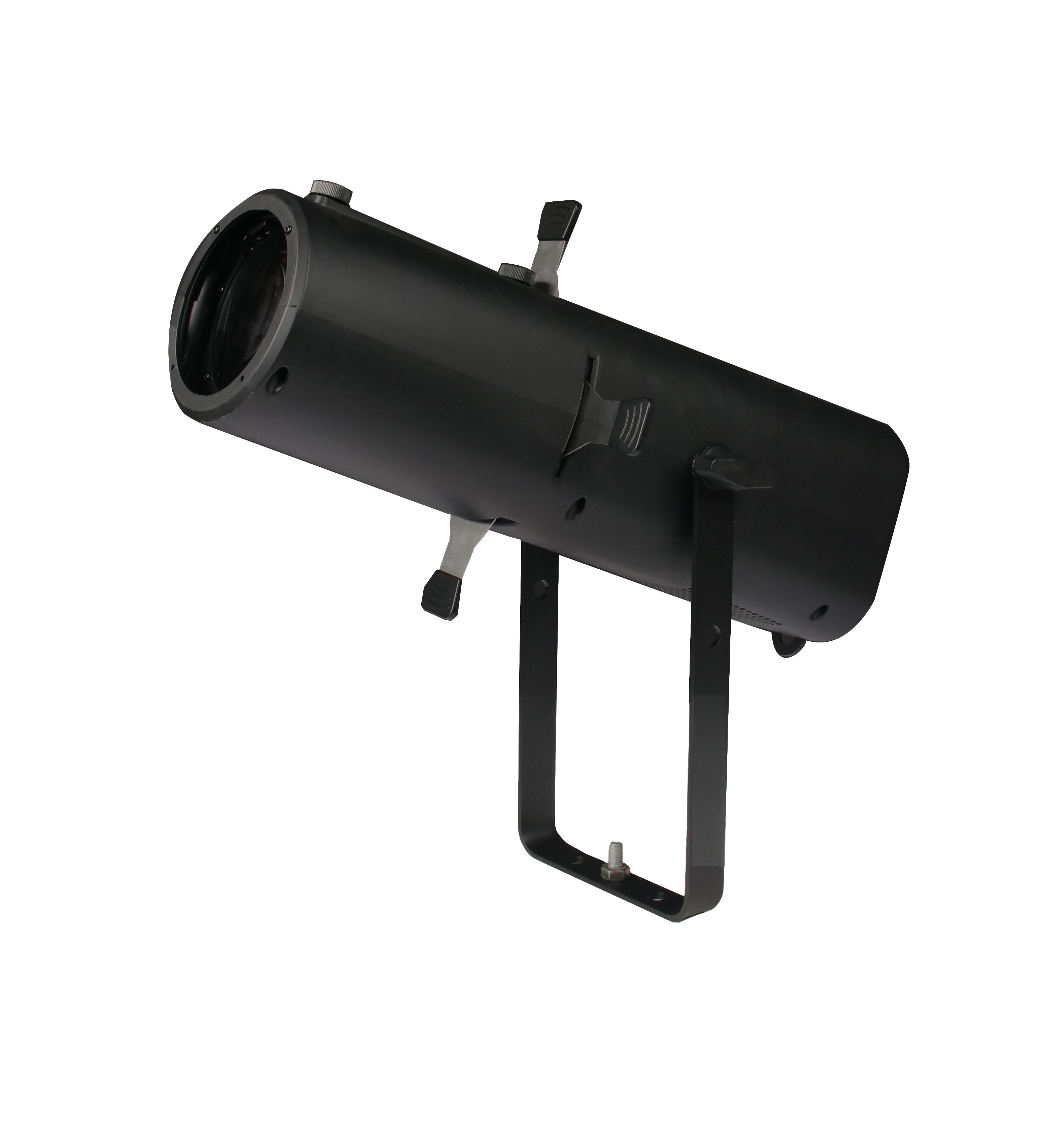

ECLIPSE S 200 C6 is a compact and lightweight 6 colors profile, with uniform color mixing, clear projection. Equipped with intelligent color manage ment system CCS, to ensure the color consistency. Built-in 1800-10000K high CRI CCT and 48 common used colors. Its integrated structural design, holding the sharp shutter framing system, and manual zoom 25-50°. It is perfect for theaters, multi-functional hall, church, conference room, and TV stations applications etc.
Optical system
Light source: 200W RGBALC
Luminous flux: 7768lm
CCT: 1800K-10000K
CRI Ra: 97
Angle: Manual Zoom 25-50°
Control System
Dimmer: 0-100% 16Bit
Cooling: Forced convection
Control: DMX/RDM
Display: On board Control, 0-25Hz Strobe
Con Personality: BASIC (3CH), SSP (7CH), TOUR (12CH), TR16 (18CH), HSIC (7CH), CMY (10CH)
Framing system: 4 blades, manual shutter
Appearance
Size: 568 x 224 x 191mm
Weight: 6.1kg
Casing: Flame-retardant plastic (V0)
Color: Black
Electrical Specs
Voltage: AC100-240V, 50/60Hz
Rated Power: 200W

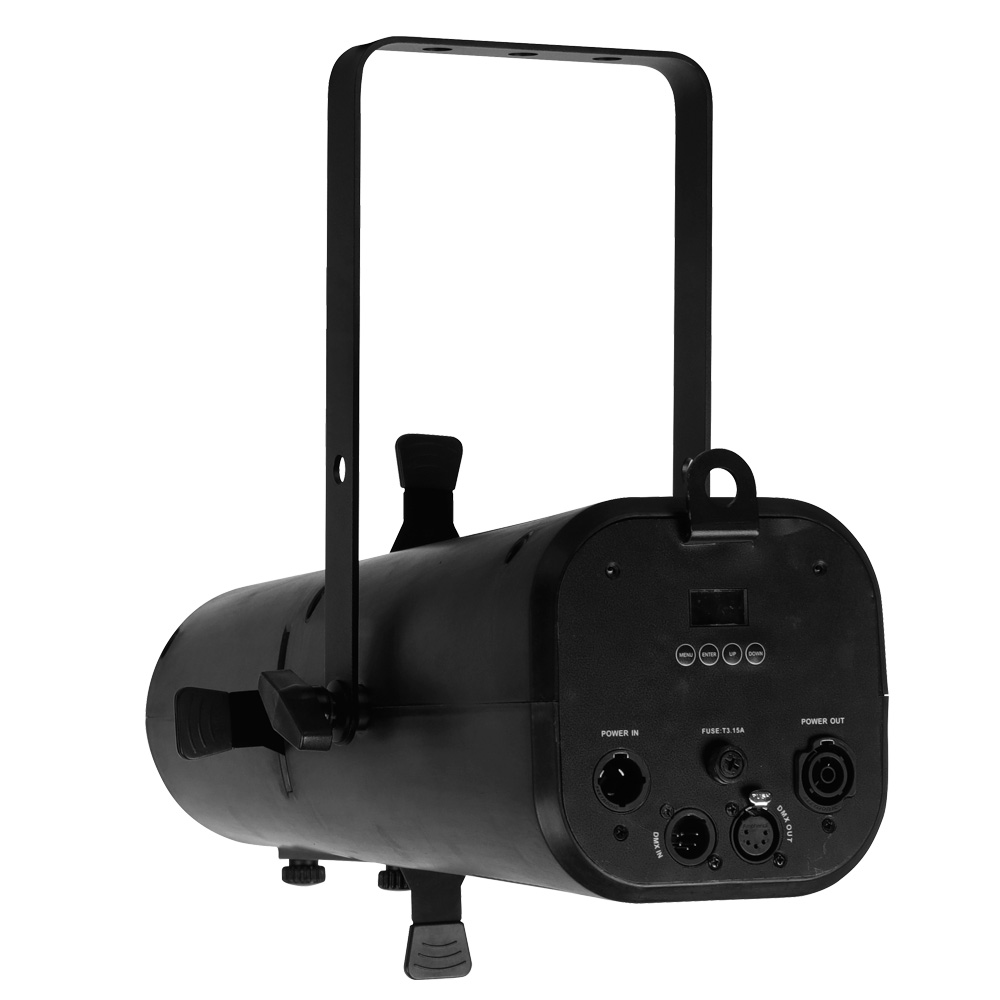

Power Connection: Power in and out
DMX XLR: 3pin or 5pin in and out
Work Environment
Ambient Temp: 0ºC-45ºC
IP Rated: IP20
Certification
CE, MET
