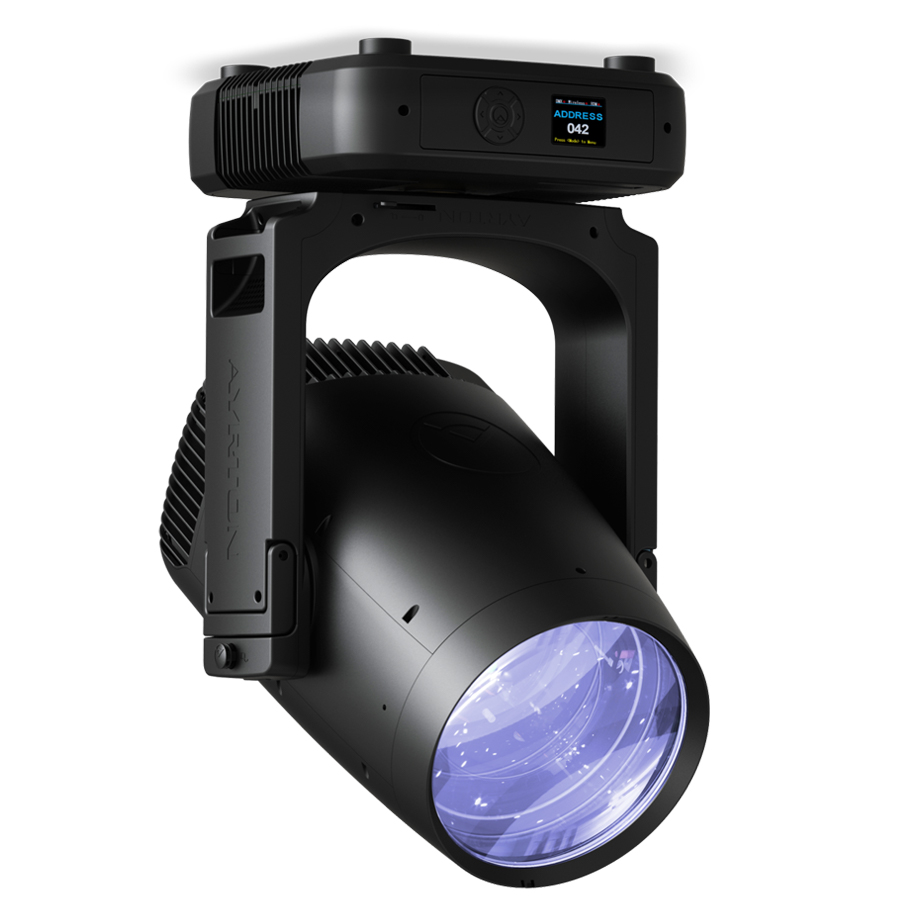

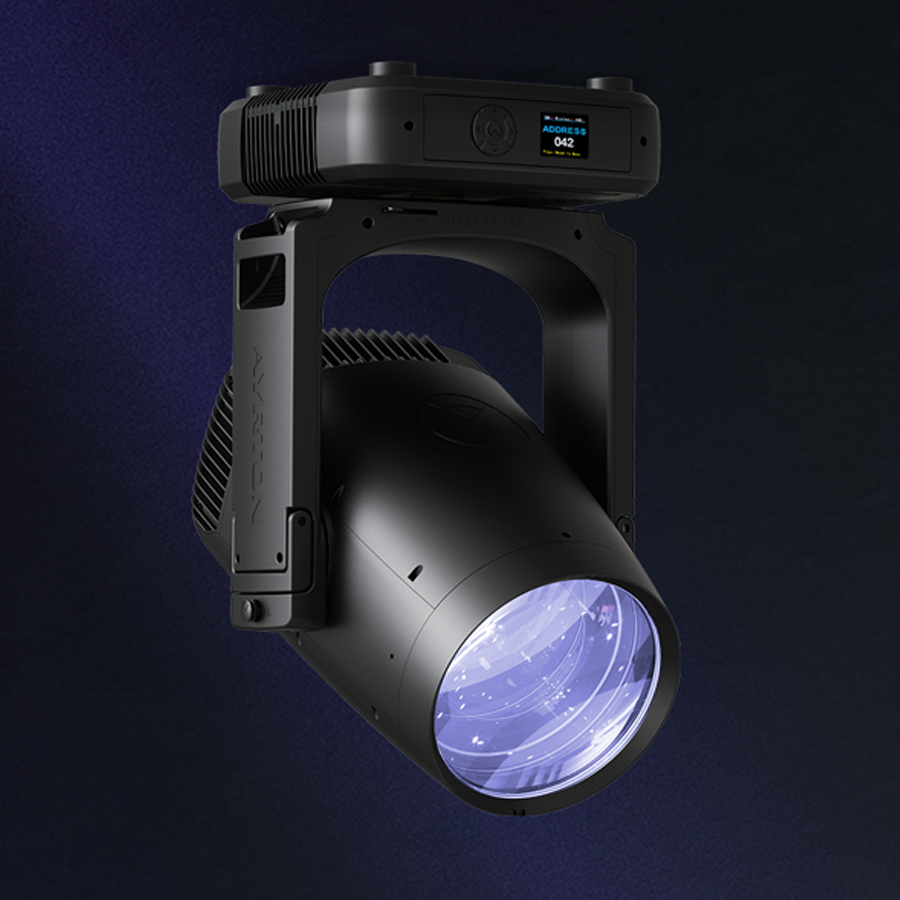

After the global triumph of Cobra—sold in thousands across the world—AYRTON unveils Mamba, a groundbreaking, versatile lighting concept. Equipped with a laser source twice as powerful, Mamba delivers a multitude of breathtaking new psychedelic effects that are nothing short of spectacular. Mamba boasts unmatched graphic capabilities, featuring 18 motors dedicated solely to effect creation. It offers a vast selection of 92 fixed and rotating metal gobos across two wheels, specifically designed to sculpt light in “beam” mode. An endlessly rotating ovoid animation wheel adds to its dynamic arsenal. The gobos can be paired with an initial level of two palettes, each containing four individually rotating prisms that can be combined. These can then be linked to a second level of four combinable prisms situated at the front of the fixture, enabling the creation of a multitude of complex volumetric effects. Completing its graphic toolkit are two Frost filters. Mamba introduces a highly innovative colour section, including a brand-new high-definition gradient CMY mixing system and an instant-access multi-position wheel equipped with 15 complementary colour filters, two multicolour filters, two CTP correctors, a progressive CTO, and three multicolour sections—RGB, CMY, and RGB+CMY—spread over two concentric circles. Fitted with a 250 mm front lens, the proprietary 13-lens optical system offers a 21 x zoom range and an operating span from 0.7º to 15º, pushing the boundaries of beam definition with a native contrast unparalleled by any digital light source. Mamba features an extreme focusing range that allows you to adjust the beam shape based on the operating distance. With continuous pan and tilt rotation multiplying the possibilities for creating complex effects, this fixture becomes a universal tool capable of tackling any challenge in any condition. Developed as a versatile fixture, Mamba operates flawlessly both outdoors and indoors—even in saline environments—while maintaining full accessibility and an incredible weight of just 41 kg. It’s equipped with a sun protection system and an integrated heating system that withstands temperatures as low as -20 ºC (-4 ºF).
OPTICS
13-element 21:1 zoom high-resolution optic system
Beam aperture: 0.7° to 15°
Fast motorised linear zoom
Tempered anti-reflective coated lenses
250 mm frontal lens for greater performance
LIGHT SOURCE
Luminous flux: 2,600,000 lux at 10 m
Colour temperature output: 6500 K
Rated life (L70): up to 12,000 hours
Speckle-free source
MOVEMENT
Highly accurate positioning
Moving-head operated via either 8- or 16-bit resolution
High-resolution stepper motors operated via microprocessors to ensure extreme accuracy and smooth movement
Pan and tilt automatic repositioning
Moving-head range: infinite pan and tilt rotation
COLOURS
Sophisticated colour mixing system providing CMY color mixing
Fixed colour wheel with progressive CTO, 15 complementary colour filters, 2 multicolour filters and 3 coloured animation sections
GOBOS
One indexable rotating gobo wheels with 12 glass gobos, plus open position
Adjustable-speed rotating gobo in both directions
Fixed multi-position gobo wheel with instant access to 80 metal gobos
Gobo diameter: 6.9 mm
Image diameter: 4.0 mm
FROST
2 frost filters : one light, one heavy
EFFECTS
Monochromatic graphical animation effects wheel with continuous rotation in both directions
2 set of 4 combinable rotating and indexable prisms
2 extra set of 2 combinable rotating and indexable prisms
DIMMER / STROBE
Electronic dimmer, allowing perfect light adjustment from 0 to 100% without colour variation
Strobe effect, with speed adjustment from 1 to 25 flashes per second
SOFTWARE FEATURES
Local DMX addressing of luminaire and optional parameters through its built-in LCD control panel
Remote DMX addressing of luminaire and optional parameters through a standard RDM DMX controller
Information menu including hour counter, temperature, software version
HARDWARE FACILITIES
Graphic LCD display for addressing and special functions settings, with flip function
5 menu buttons to set functions
Excess temperature protection
Integrated wireless CRMX TiMo RDM receiver from LumenRadio
IP65 XLR 5 pin male and female connectors for DMX connection
IP65 RJ45 IN / OUT connectors for ArtNet connection
IP65 PowerCON TRUE1 TOP male connectors for power connection
CONTROL
DMX 512 protocol, through DMX cable or a wireless system
DMX-RDM compatible
Stand-alone mode and Master/Slave modes
ArtNet & sACN protocol through Ethernet cable
Local control panel, with IP65 LCD display
Footprint of 47 DMX channels
POWER SUPPLY
Electronic supply with active PFC
100 to 240 Volts – 50/60Hz
Power: 800 W maximum
COOLING SYSTEM
Advanced liquid cooling system
Self-adjusting variable speed fans for quiet operation (Auto mode)
Selectable ventilation user modes with a new Silent Mode
Safety protection against excess temperature
HOUSING
Moving-head skeleton made of aluminium and steel metal plates
Base in die-cast aluminium
Heatsinks in aluminium and copper
Moulded covers in self-extinguishing fire retardant ABS PC (V0 class)
Two-side handles for transportation
Four heavy-duty feet for better stability
IP65 protection rating
Exterior finish: black (Carbon)
INSTALLATION
Fastening bracket system: two Omega ¼ turn brackets designed for use with standard clamps
Mounting points: four ¼ turn locking fittings allowing installation of Omega brackets on luminaire
Safety cable attachment point
OPERATING PARAMETERS
Operating positions: all (device on floor or fixed to a support)
Maximum permitted ambient temperature (Ta max): 45° C (113° F)
Minimum permitted ambient temperature (Ta min): -20° C (-4° F)
Minimum usage distance: 35 m (114.83 ft).
COMPLIANCE
EU (EMC & LVD)
EMC Directive 2014/30/EU
LVD Directive 2014/35/EU
US (Safety & EMC)
UL 1573
FCC Part 15, Subpart B: 2018
SIZE
Product: 404 x 747 x 368 mm (l x h x d)
Flight-case foam: 680 x 640 x 500 mm (l x h x d)
WEIGHT
Product: 41 kg
